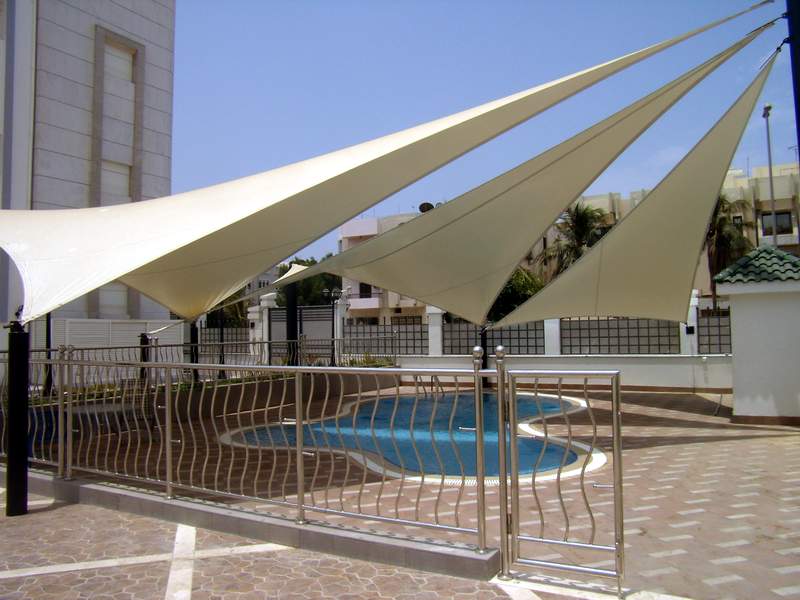

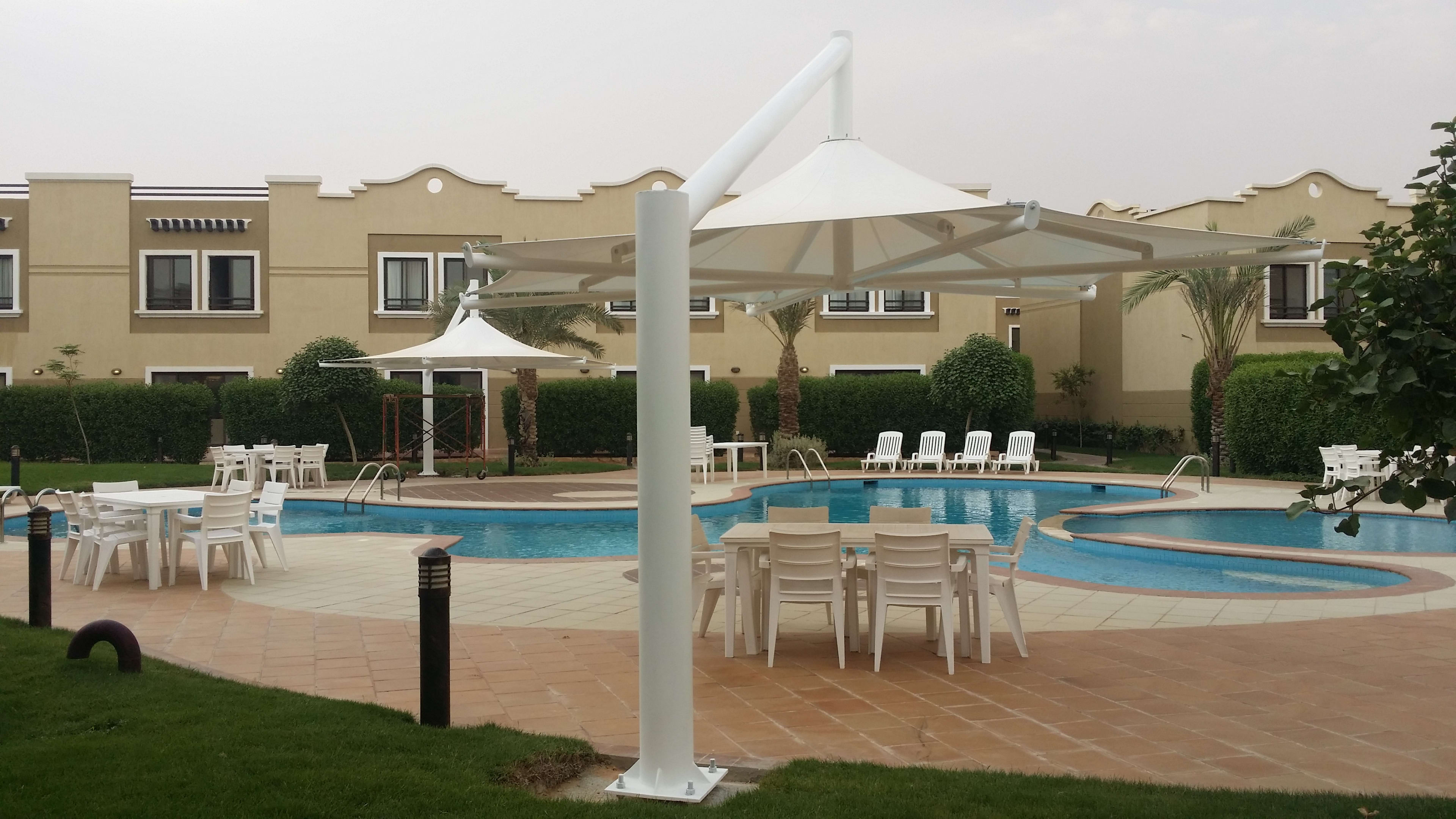

Swimming Pool Area Shade
DETCO's Swimming Pool Area Shades are premium tensile membrane structures providing elegant, UV-protective coverage for pools, lounges, and recreation areas in Saudi Arabia. Using high-quality PVC/PVDF/PTFE membranes on galvanized steel frames, they offer 95-99% UV blockage, waterproofing, ventilation, and modern designs (hypar, conical, curved) for hotels, compounds, schools, and public pools – ensuring comfort, safety, and aesthetic appeal in harsh desert conditions.
Product Overview
DETCO Swimming Pool Area Shades are specialized tensile structures designed to cover pools and surrounding lounges, creating shaded, comfortable outdoor spaces year‑round. Stretched high‑performance membranes (PVC 680‑1100 GSM, PVDF for self‑cleaning, PTFE for premium longevity) are tensioned over engineered steel frames to provide large‑span coverage with minimal supports, excellent airflow, and natural light diffusion.
Engineered using SAP2000, ETABS, and AutoCAD for wind, sand, and heat resistance, compliant with international standards. Frames use galvanized steel, aluminum, or stainless with hot‑dip galvanization, epoxy, or powder coating. High‑strength tension systems and screws (grades 8.8/10.9) ensure stability.
Versatile forms: curved barrel vaults, multi‑peak conicals, hyperbolic sails, or cantilevered canopies. Ideal for residential compounds, hotels, schools, hospitals, and public recreation centers. Features include fire resistance (B1/M2), waterproofing, and easy maintenance. Turnkey services: design, fabrication, installation, and support across KSA – enhancing poolside usability while reducing heat and UV exposure.
Key Advantages
- Membrane Material :
PVC (680-1100 GSM), PVDF, or PTFE; UV-resistant, waterproof, breathable; 95-99% UV blockage with self-cleaning options.
- Structure Material :
Galvanized steel, aluminum, or stainless; hot-dip galvanized for corrosion resistance in humid/pool environments.
- Wind Load Resistance :
Up to 120-150 km/h, engineered per Saudi standards with tensioned design for stability.
- Fire Rating :
B1/M2 self-extinguishing, low flame spread compliant with international codes.
- Temperature & Humidity Range :
-40°C to +70°C, chlorine/salt-resistant coatings for poolside durability.
- Tension & Connections :
Stainless steel cables, high-strength screws (8.8/10.9 grade) resistant to tension/shear.
- Coating/Protection :
Hot-dip galvanization, epoxy, or thermal powder coating for 20+ years lifespan.
- Warranty :
10-20 years on membrane (UV/fading/chlorine resistance), 10+ years on structure (project-specific).
Key Benefits
